Getting Started

The Narravero API is a REST interface that provides an interface for creating and updating Tridys.

A low-level documentation can be found here: OpenAPI Documentation.

A DPP is generated for every Tridy in Narravero. The layout and design of a DPP is defined by a DPP Template and a Tridy is described by a Content Type.

For our first generated DPP, we need the following parts:

  • Data that represents our product

  • DPP Template and Content Type

  • Interface to receive Data

  • Our first Tridy via the API

Data

The data we receive for Tridys is freely structured JSON. The only cases where the structure matters is when accessing the data from a DPP Template or if the JSON contains identifiers or media Narravero should process.

{
  "ean": "12345678",
  "productName": "White, fancy Sneaker",
  "price": "123,32€"
}

This data will be used throughout this tutorial.

DPP Template and Content Type

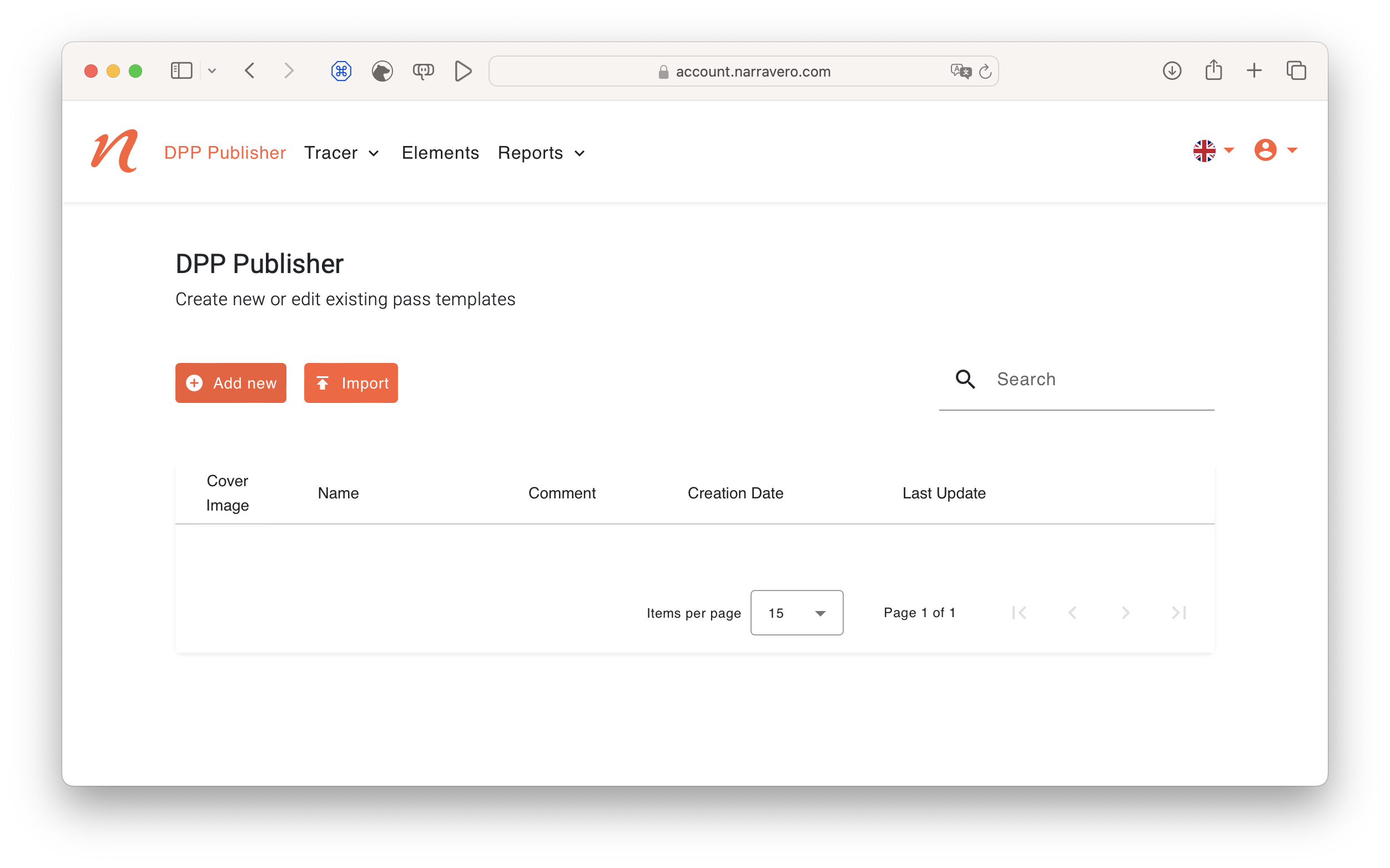

A DPP Template defines the design and layout of a DPP. It is filled with data from a Tridy via placeholders. A Content Type describes the content of a Tridy and is the link to the DPP Template.

../_images/publisher-templates.png

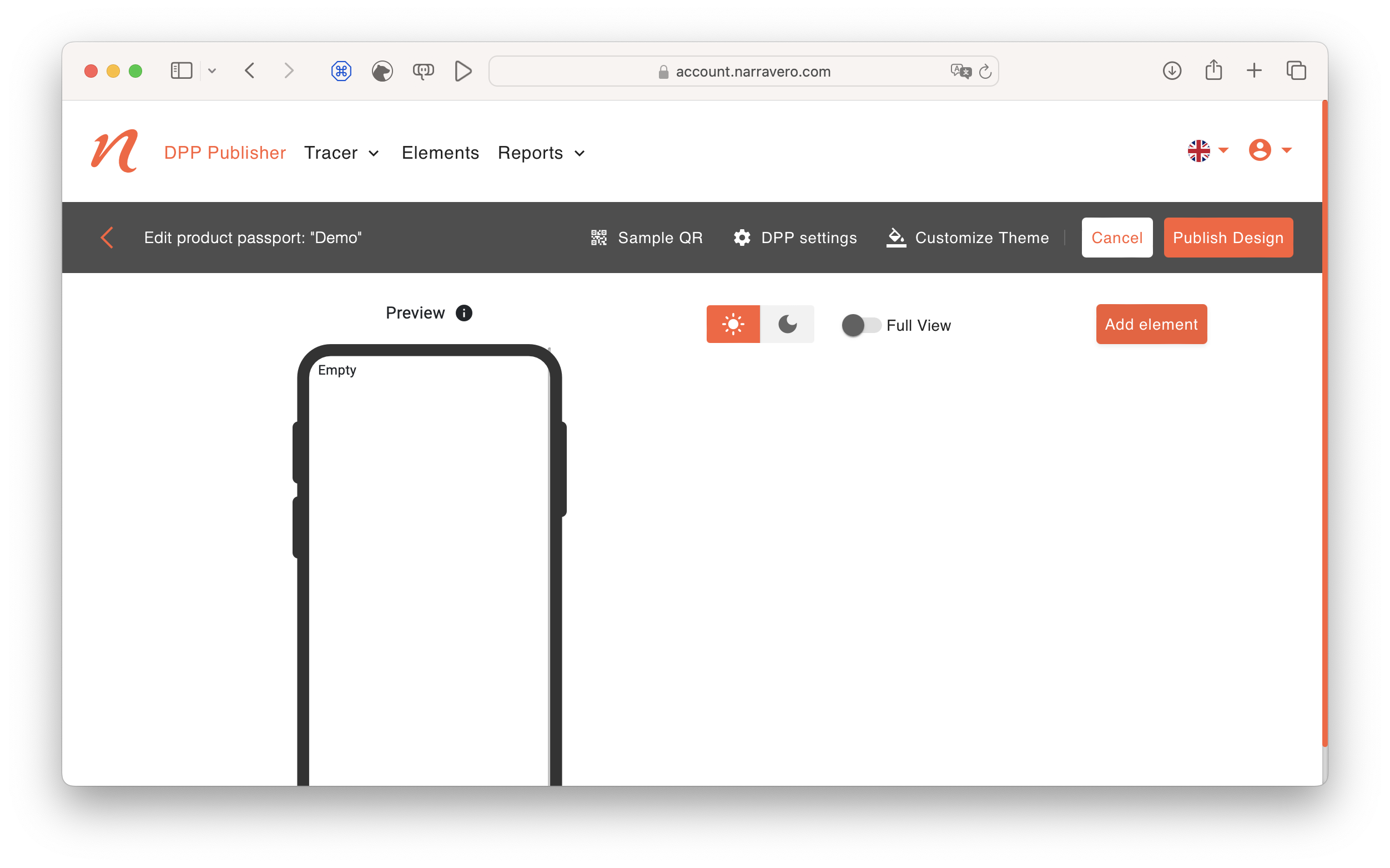

A new empty DPP Template can be created with a name describing it:

../_images/publisher-new-template.png

A DPP Template consists of so called Widgets, that represent the contents of the DPP.

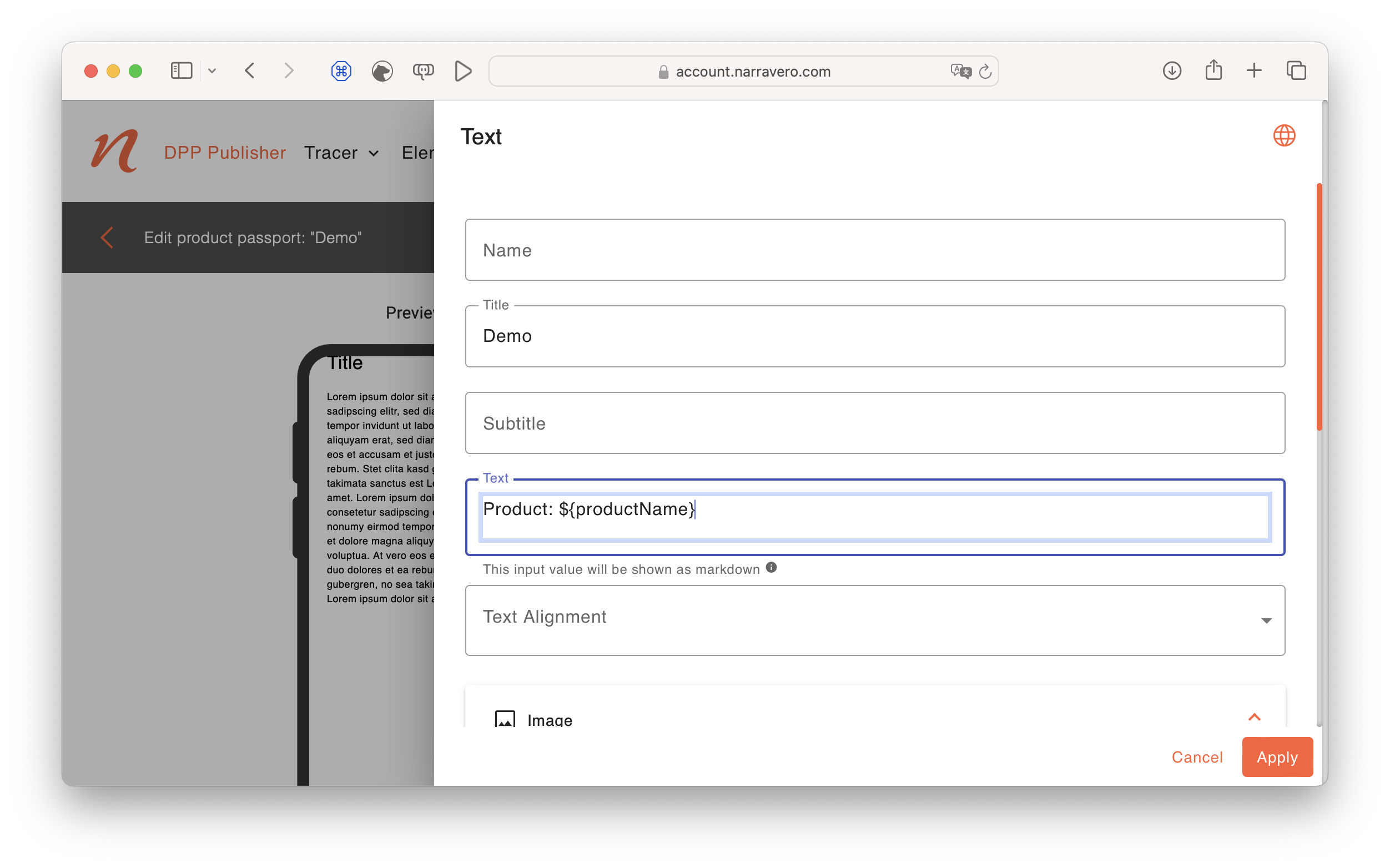

We start by adding a Text Widget to the DPP by clicking “Add element”, pick “Text”, and then edit it by clicking on it:

../_images/publisher-edit-text.png

We used a placeholder here: ${productName} that will be replaced by the data in the Tridy (“White,fancy Sneaker”).

After “Apply”ing the changes, we use “Publish Design” to store all changes.

Creating a DPP Template also creates a Content Type of the same name.

Interface

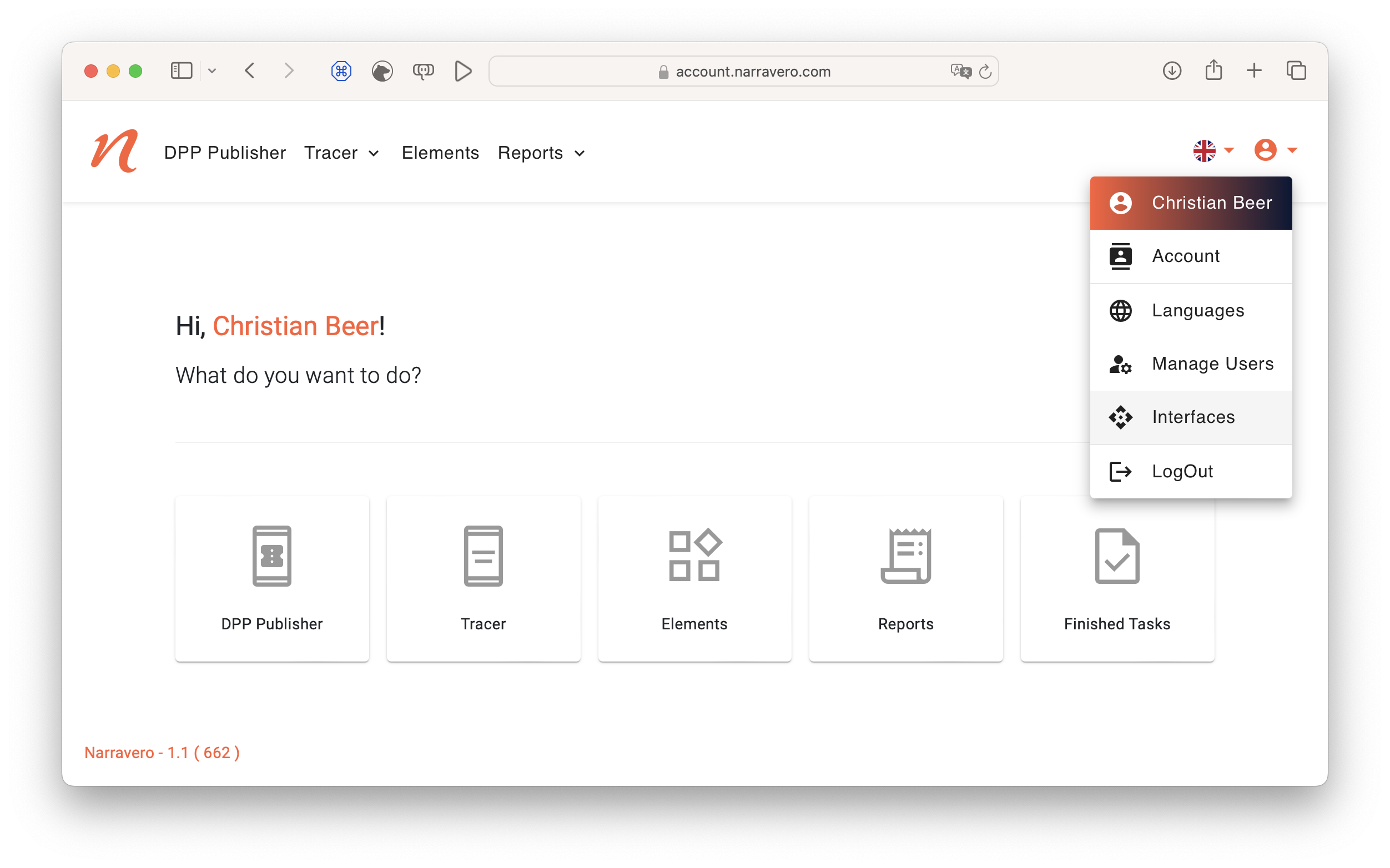

The interface is defined via the user context menu in the upper right corner of the DPP Publisher. It has a unique name that is used to access it via the API:

../_images/publisher-interfaces.png

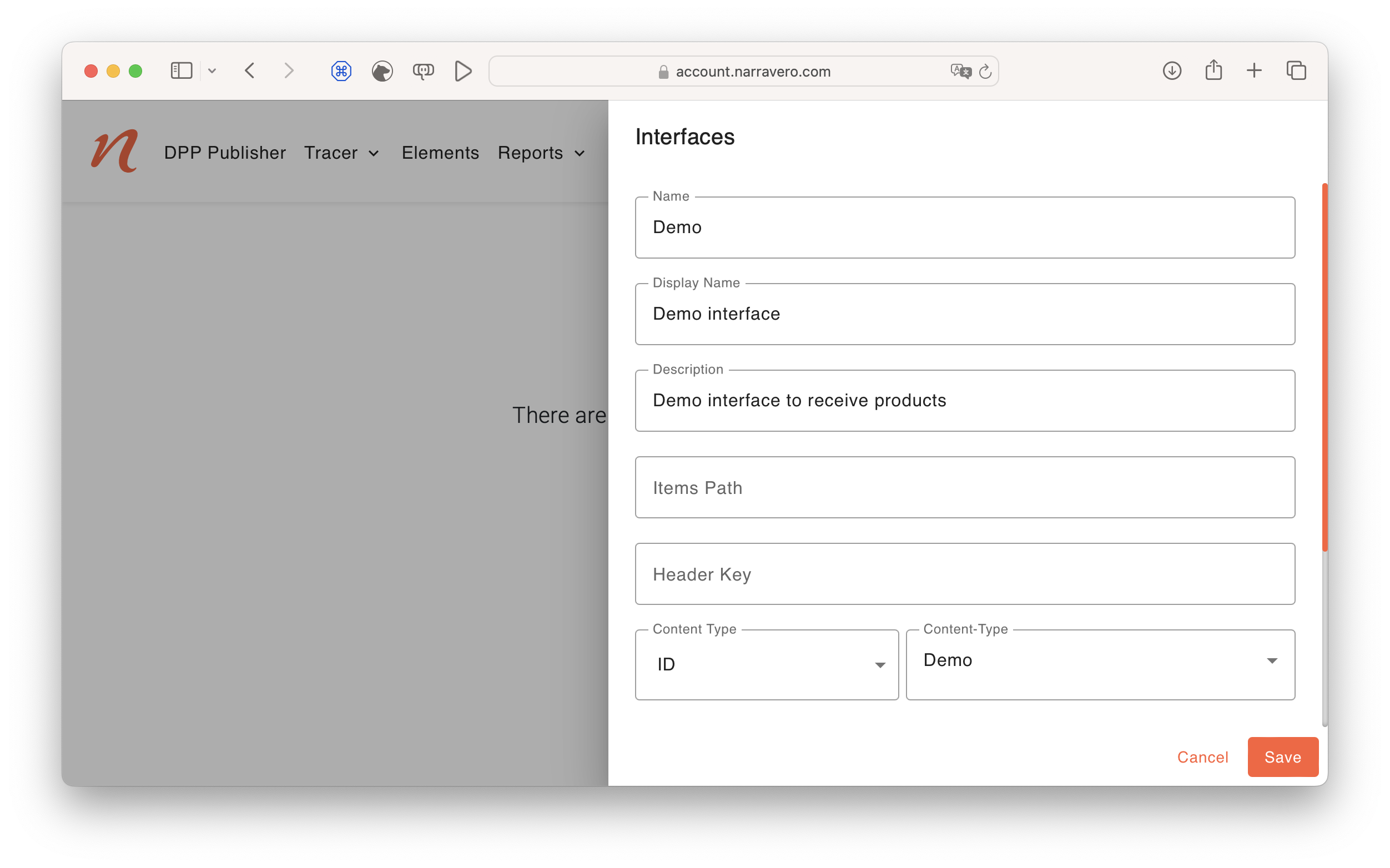

Make sure you give your Interface a name that is recognizable:

../_images/publisher-interface-new.png

Please note we need to select “ID” for “Content Type” and then pick our content type we created earlier.

Create first Tridy

Now we finally reach the API level of the tutorial and we create our first Tridy using the API.

To give the API a try, we can do this right from the OpenAPI documentation.

First we need to authenticate to the Narravero API using the Narravero API token we received.

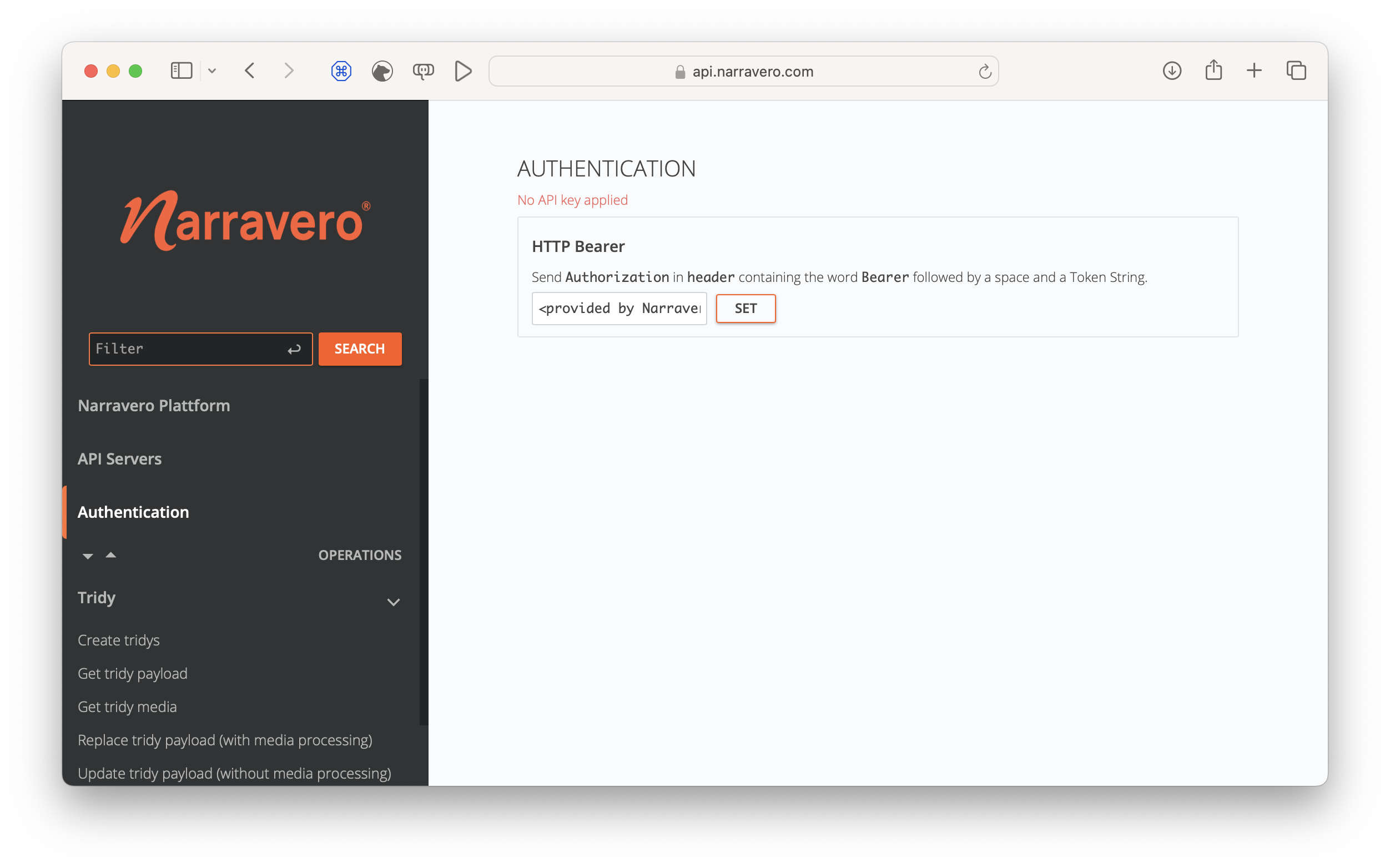

We can do that on the Authentication page:

../_images/openapi-authenticate.png

After clicking “Set”, we are all set to create our first Tridy in Create Tridy:

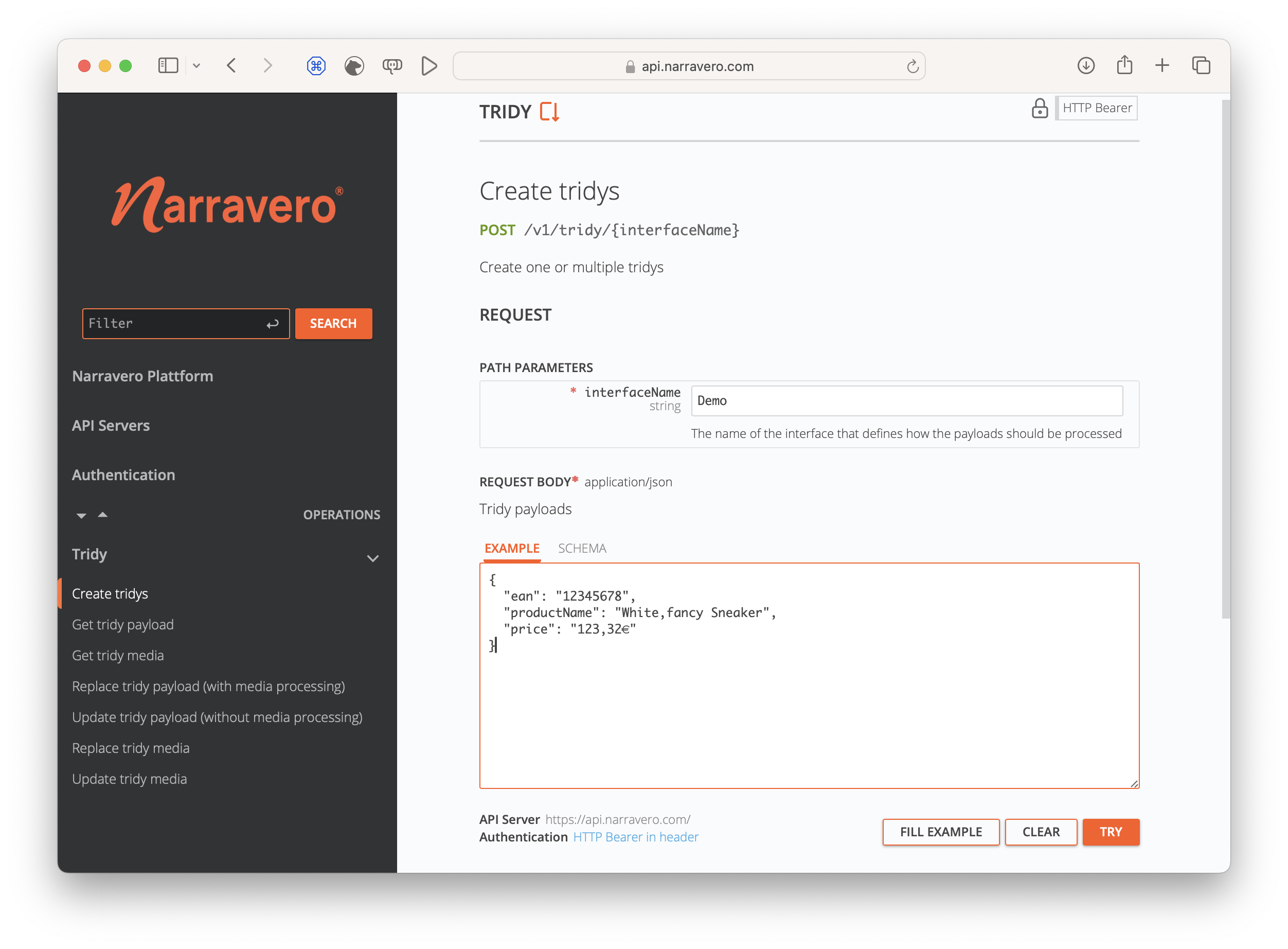

We set the name of our Interface and provide the sample data:

../_images/openapi-create-tridy.png

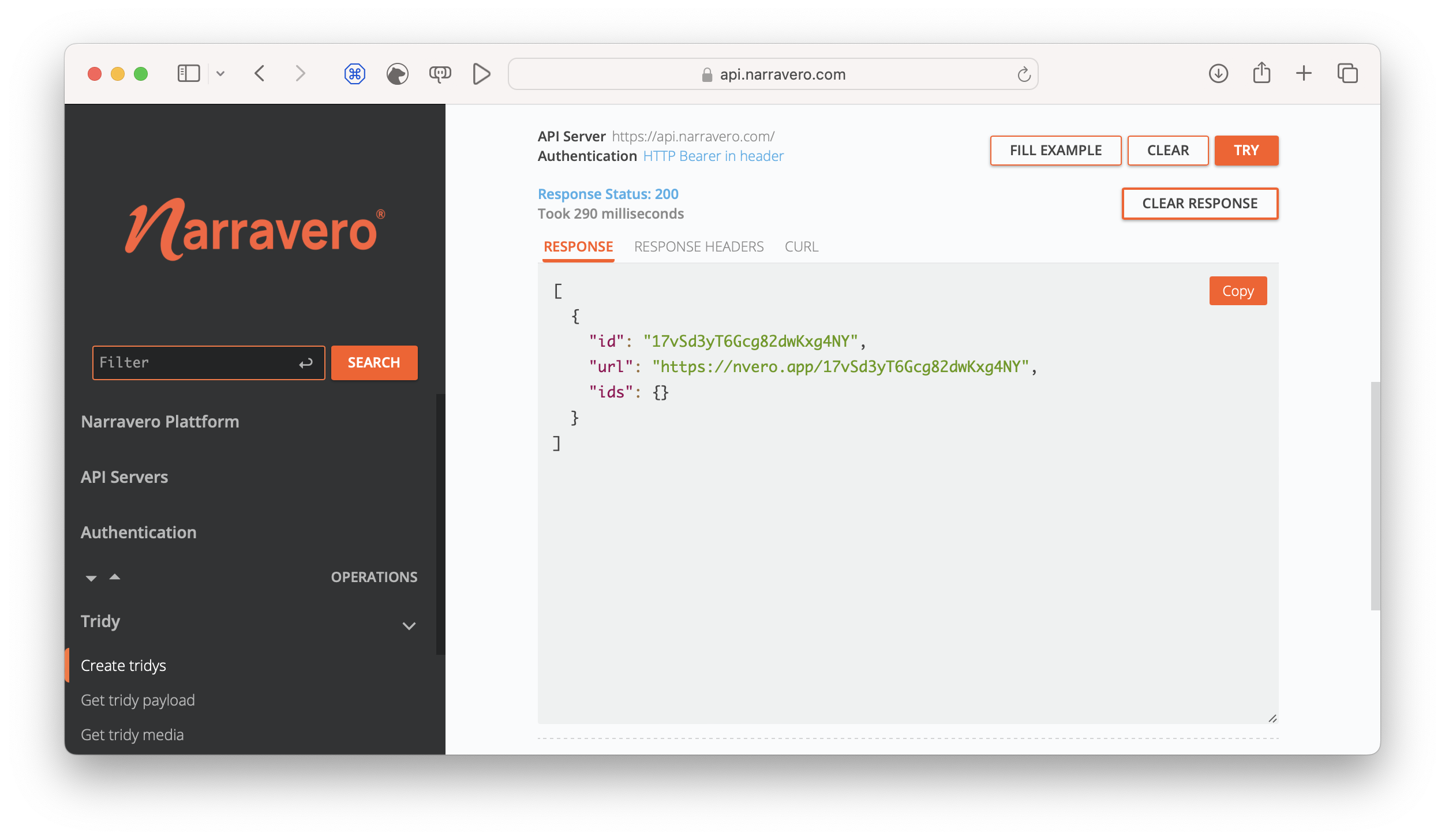

After clicking “Try”, we can see the result below:

../_images/openapi-create-tridy-result.png

Since we didn’t yet define any ids in the Interface, the list of ids is empty.

We received our first Tridy-ID 17vSd3yT6Gcg82dwKxg4NY and also the URL for our first DPP: https://nvero.app/17vSd3yT6Gcg82dwKxg4NY that we can open:
